BELLTECH LOWERING KITS 2021 Chevrolet Suburban / GMC Yukon XL 2wd/4wd 2" to 3.5""F / 1" to 3.5" R - Long Wheelbase
Product Details
Part Number: 1034
Fits: 2021+ GM Suburban / Yukon XL 2WD/4WD
-2” Front and -1” to -3.5” Rear
Discover the next level of performance with the new line of Belltech 2021+ GM SUV lowering kits. Our kit lowers the front of your vehicle -2” and -1” to -3.5” at the rear to set the perfect stance and a lower center of gravity. We go well beyond looks and deliver the ride quality you have been dreaming of.
At the front we include our famous Belltech spindles to achieve front end lowering by bringing your wheels’ mounting position up higher and settling your vehicle closer to the ground. Belltech spindles are made from durable ductile iron and powder coated for longevity.
To achieve a lowered rear ride height, we include our robust Belltech Street Performance struts. They are created with high-quality, multi-functional components that are built to last. Each strut features a large, 2” (50mm) damper body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout your journeys. Belltech uses a patented ring spacer design to offer height adjustability in half inch increments. The struts use a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement, and the OE top mounts for simplified installation.
Going the extra step to refine the rear suspension we showcase a Belltech rear angle correction control arm kit designed to correct negative camber, return proper ball joint angles, prevent unwanted pulling, and reduce tire wear, which in the long term, is truly pertinent. Engineered specifically for the 2021+ GM SUV, the control arms are easy to install and built to last due to their solid steel construction. We finish with a high-quality powder coat to increase their longevity, Belltech control arms are immensely durable. The result is a smoother, safer ride with improved handling.
Belltech’s 2021+ GM SUV complete lowering kit brings out the best in your ride with eye-catching appearance and extraordinary performance. Easy installation plus quality components result in a refined ride for years to come.
- Precise front lowered ride height of -2”
- Customizable rear lowering options of -1” to -3.5”
- Large bodied 2.0” (50mm) preset rear Street Performance struts
- 35mm independent rebound and compression valves
- Adjustable length control arms for angle correction
- Robust drop spindles
- Lowers center of gravity
- Easy to install
- Engineered to exemplify ride quality and performance
Specifications
| Weight | 97.5 lb |
|---|---|
| Package Length | 49" |
| Package Width | 29.5" |
| Package Height | 19" |
| UPC Code | 722439014716 |
| Box Dimensions (L × W × H) | 49" × 29.5" × 19" |
|---|---|
| Shipping Weight | 97.5 lb |
| Lowering / Lift | Lowering up to 2" |
| Installation Guide | https://prod-da.s3.us-east-2.amazonaws.com/CRVS/a4bb9696fd72a13002462a12face8945.pdf |
| UPC | 722439014716 |
| Manufacturer Part # | 1034 |
| Front Height Range | -2" |
| Rear Height Range | -1" to -3.5" |

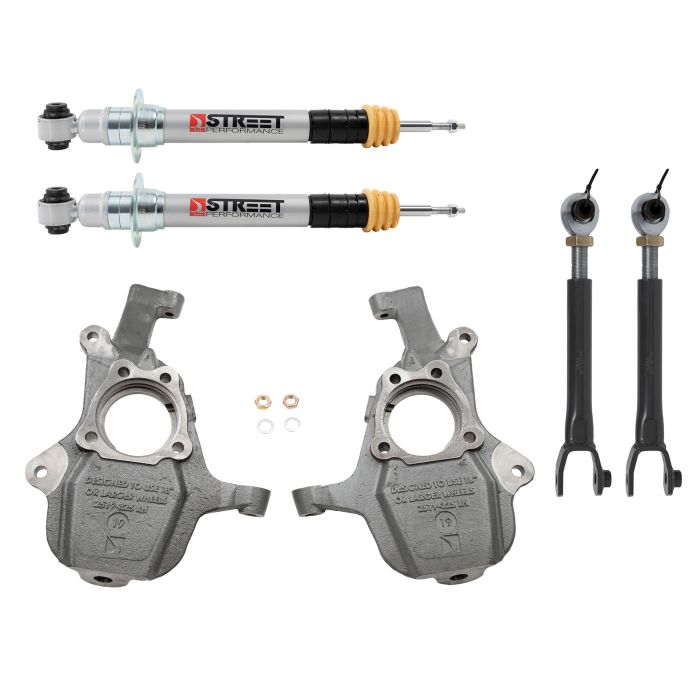

This kit ships as the following components:
| Component | SKU | Qty per Kit | Price | |
|---|---|---|---|---|
| 2 INCH DROP SPINDLE SET - 2519 | BEL-2519 | 1 | $515.00 | View / Buy |
| SP LOWERING STRUT (REAR) | 0-3.5 INCH - 25022 | BEL-25022 | 2 | $142.00 | View / Buy |
| REAR CONTROL ARM KIT - 25122 | BEL-25122 | 1 | $415.00 | View / Buy |
