BELLTECH LOWERING KITS 2021 Chevrolet Tahoe / GMC Yukon 2wd/4wd 0.5" to 3"F / 1" to 4.5" R - Short Wheelbase

Part Number: 1106SPC

2021+ GM Tahoe / Yukon SWB 2WD/4WD

-0.5” to -3” Front and -1” to -4.5” Rear

Discover the next level of performance with the new line of Belltech 2021+ GM SUV lowering kits. Our kit lowers the front of your vehicle -0.5” to -3” and -1” to -4.5” at the rear to set the perfect stance and a lower center of gravity. We go well beyond looks and deliver the ride quality you have been dreaming of.

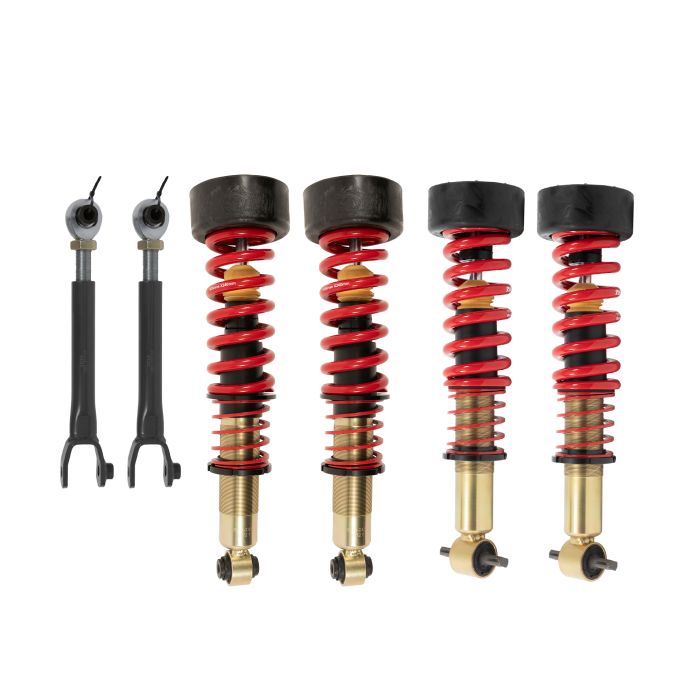

The front and rear suspension includes our robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech damper that features a large, 2.4” (60mm) damper body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer customizable height adjustability. We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement, and the OE top mounts for simplified installation.

For the rear suspension we showcase a Belltech rear angle correction control arm kit designed to correct negative camber, return proper ball joint angles, prevent unwanted pulling, and reduce tire wear, which in the long term, is truly pertinent. Engineered specifically for the 2021+ GM SUV, the control arms are easy to install and built to last due to their solid steel construction. We finish with a high-quality powder coat to increase their longevity, Belltech control arms are immensely durable. The result is a smoother, safer ride with improved handling.

Belltech’s 2021+ GM SUV complete lowering kit brings out the best in your ride with eye-catching appearance and extraordinary performance. Easy installation plus quality components result in a refined ride for years to come.

• Customizable front lowering options of -0.5” to -3”
• Customizable rear lowering options of -1” to -4.5”
• Large bodied 2.4” (60mm) preset Street Performance dampers
• 35mm independent rebound and compression valves
• Cold-formed steel springs
• Adjustable length control arms for angle correction
• Lowers center of gravity
• Preserves OE ride quality and suspension geometry
• Easy to install
• Engineered to exemplify ride quality and performance

IMPORTANT NOTES: This Belltech Coilover Kit does NOT fit Models with ARC or Magnetic Ride Shocks.
