BELLTECH REAR 4-LINK KIT 1988-1998 Chevy C1500, w/ C-notch & Sway Bar
$3,700.00
In stock
SKU
BEL-350R00
BELLTECH LOWERING KIT
Fast Shipping
360° Service
Product Details

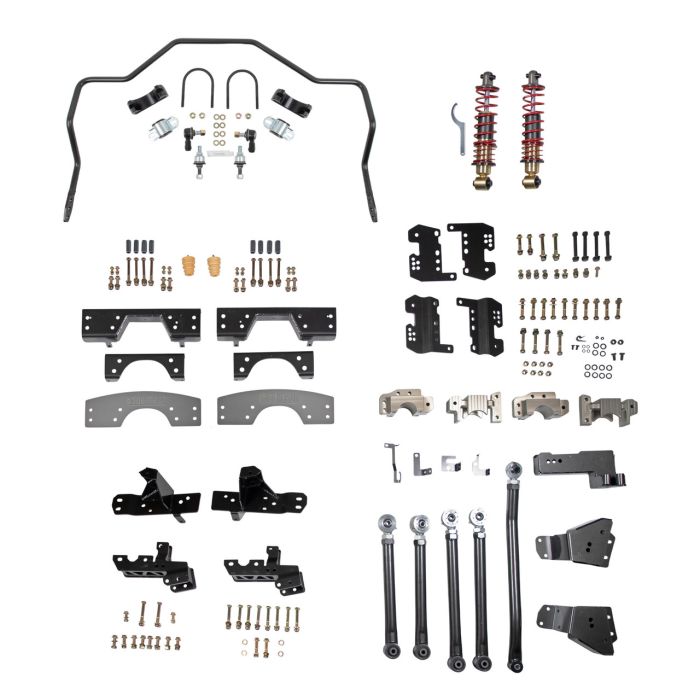

Transform your classic into a modern performance machine with Belltech’s rear suspension upgrade kit for the 1988–1998 Chevrolet C1500. This complete system includes a precision-engineered 4-link conversion with adjustable track bar, coilovers, a super C-notch for increased suspension travel, and a heavy-duty adjustable rear sway bar. Every component is engineered to work together, delivering improved traction, flatter cornering, a refined ride, and confident control—while maintaining the classic stance and style that makes your OBS an icon.
Rear Features
- Super C-Notch Assembly
- Expands suspension travel for a controlled, comfortable ride at lower heights
- Boxed design reinforces frame strength and rigidity
- 3/8” thick hard-anodized aluminum arch support
- Integrated foam overload bump stops
- 4-Link System
- Heavy-duty 2” x 1/4” wall tubing built to plant power to the pavement
- Adjustable axle brackets: 4”–6” ride height
- Tunable anti-squat (75%–120%) and pinion angle for tailored traction + launch
- Rebuildable, greaseable rod ends for long-term serviceability
- Adjustable Track Bar
- Maintains proper axle centering + roll stability
- Constructed from 2” x 1/4” A36 steel with low-friction, triple-wall vulcanized bushings
- Ride-height positions: 4”, 5”, 6”
- Height-Adjustable Coilovers
- 60mm (2.36”) galvanized steel housing for optimized corrosion protection
- Powder-coated high-tensile 35 N/mm spring rate sport-tuned springs
- Progressive-rate polymer foam bump stops provide smooth limit control
- Spherical lower mounts for smooth articulation
- 3/4” Solid Rear Sway Bar
- Three adjustment positions for customizable handling
- Finished with durable powder coat
- includes Class 10.9 hardware
Specifications
| Weight | 328.2 lb |
|---|---|
| Package Length | 220.5" |
| Package Width | 108.5" |
| Package Height | 51" |
| UPC Code | 722439015874 |
Documentation
| Box Dimensions (L × W × H) | 220.5" × 108.5" × 51" |
|---|---|
| Shipping Weight | 328.2 lb |
| Lowering / Lift | Lowering 4" or more |
| Installation Guide | https://prod-da.s3.us-east-2.amazonaws.com/CRVS/90b78c2b22f724a690c480ea596965ae.pdf |
| UPC | 722439015874 |
| Manufacturer Part # | 350R00 |
| Front Height Range | 0 |
| Rear Height Range | -4" to -7" |
